Timbren 6000 Lb. Electric Brake Hub And Drum, 6 Studs On 5.5", 1/2" DIA.

Remove the guesswork of choosing a hub & brake assembly that matches your Axle-Less trailer suspension. This package includes a set of hubs with an 6x5.5 bolt pattern for both driver side and passenger side. Improve the ride and performance of your Axle-Less-equipped trailer with these 12” self-adjusting, electric-brake hubs rated for 6000 lbs.

Want to put matching wheels on both trailer and tow vehicle? Now you can! This hub and brake assembly includes a 6x5.5 bolt pattern. Please note that the studs are 1/2" UNF and cone nuts are 60˚ 1/2" UNF.

Timbren items are made to order. Expect a 2 to 3 week lead time after purchase.

Both driver and passenger side components are included in your assembly:

• Hubs with an 6x5.5 Bolt Pattern c/w Wheel Nuts & Mounting Hardware
• Self-Adjusting, Electric-Brake Assembly
• Bearings
• Lip Seals
• Rubber Plugs
• Dust Caps

With self-adjusting brakes there's no need for manual brake adjustment. As a result, you are assured optimum performance without continual maintenance.

All hub and brake assemblies are CSA approved to meet certain industry standards for safety and performance.

Features:

• Solid steel construction
• Zinc-enriched paint on drums
• Zinc-finished bolts that resist corrosion
• Parts are CSA approved

Specs:

• Bolt pattern: 6 studs on 5.5” bolt centers (6x5.5)
• Brake and hub capacity: 3000 lbs. per side - a total of 6000 lbs.
• Stud size: 1/2” diameter

What's Included in the Box

Every essential component in your assembly package includes both driver side and passenger side:

• 2x 6K hub & drum assembly with 6x5.5 bolt pattern
• 2x 12” Self-Adjusting Electric Brake Assembly

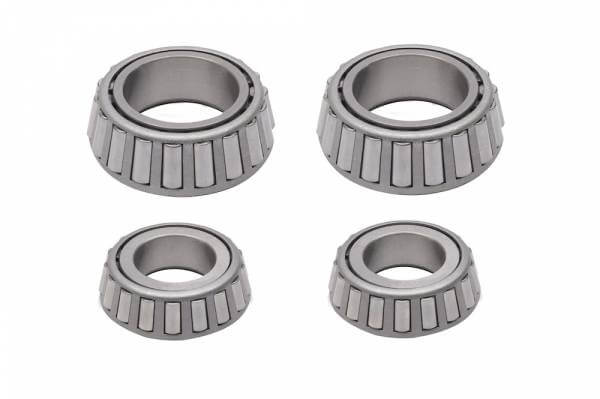

• 2x 25580 Bearings
• 2x 15123 Bearings
• 2x Double Lip Seal
• 2x Dust Cap
• 2x Rubber Plug
• 12x Wheel Nuts
• 10x Backing Plate Nuts
• 10x Backing Plate Washers
